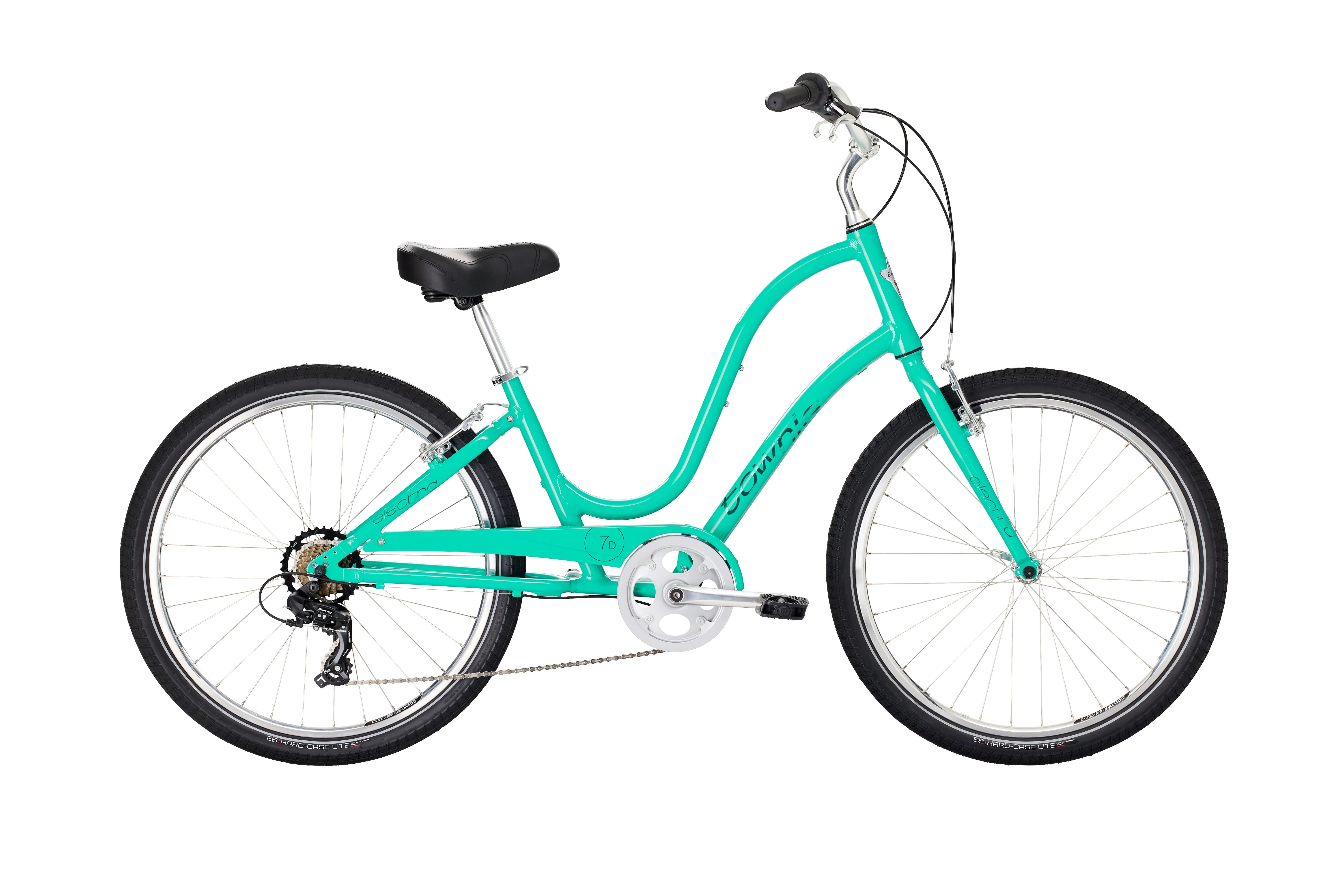

The Electra Townie® defined the comfort bike category 20+ years ago. More than just a frame, it's an icon setting the standard in style, simplicity and fun. Complete with Flat Foot Technology®, enjoy an upright seating position that lets you see the world better and plant your feet flat on the ground whenever you want.

DERAILLEUR GEAR SYSTEM

Derailleur or "D" refers to an external shifting mechanism. It consists of a chain, multiple precision sprockets and a derailleur to "derail" the chain from one sprocket to another. It allows for quick transitions and more gearing options. Just remember to pedal while shifting and you're good to go!

FLAT FOOT TECHNOLOGY

You really need to ride an Electra bike to feel the magic of Flat Foot Technology, but overall the benefits are comfort and control. It provides an upright, relaxed riding position with proper leg extension that allows you to plant your feet flat on the ground whenever you want or need to.

Frame	6061-T6 Aluminum with Flat Foot Technology®
Fork	High-tensile steel unicrown, straight/tapered leg
Tire	Bontrager E6 hard-case lite 26x2.00'' w/reflective stripe
Hub Front	Alloy low flange 32h w/QR
Hub Rear	Alloy low flange 32h w/QR
Rim	Anodized double-wall alloy 26''x32h w/machined sidewalls
Spokes	14g stainless steel
Shifter	Shimano Tourney RS45, 7 speed twist // Shimano Tourney Revo 7-speed twist with optical gear display
Rear Derailleur	Shimano Tourney TY300
Crank	Forged alloy 170mm w/steel 44t chainring w/double chainguards
Bottom Bracket	Square taper, loose ball
Cassette	Shimano TZ31 freewheel, 14-34, 7 speed // 14-34, 7 speed freewheel
Chain	KMC Z7, 7 speed
Brake	Alloy linear pull
Brake Lever	Alloy, 3-finger
Pedal	Resin platform w/non-slip tread
Saddle	Ergonomic w/shock-absorbing elastomers
Seatpost	Alloy 27.2x350mm
Handlebar	Alloy custom bend 25.9'' width/4'' rise
Stem	Forged alloy 25.4mm quill, 80mm extension
Headset	1 1/8'' steel threaded/semi-integrated
Grips	Electra hand-stitched
Kickstand	Alloy

Geometry Chart

Frame Reach	30.5
Frame Size Number	26
Frame Stack	60
Head Angle	69.0°
Head Tube Length	21.7
Seat Tube	45.8
Seat Tube Angle	67.0°
Standover	45.2
Wheelbase	116.2
Wheel Size	26"
